Communication Wires

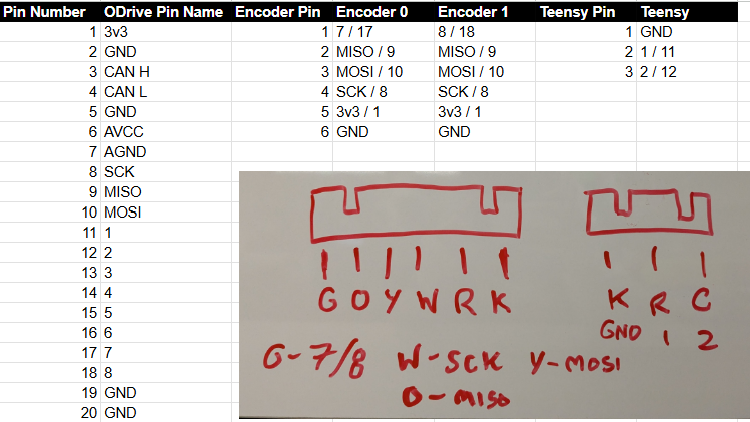

Wiring Diagram

Here’s a full configuration of how our teensy communication and encoder wiring is set up on the RamBOT.

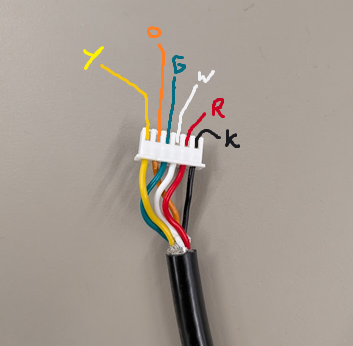

Currently to the encoders, we employ a 7-pin configuration with this order of pinout:

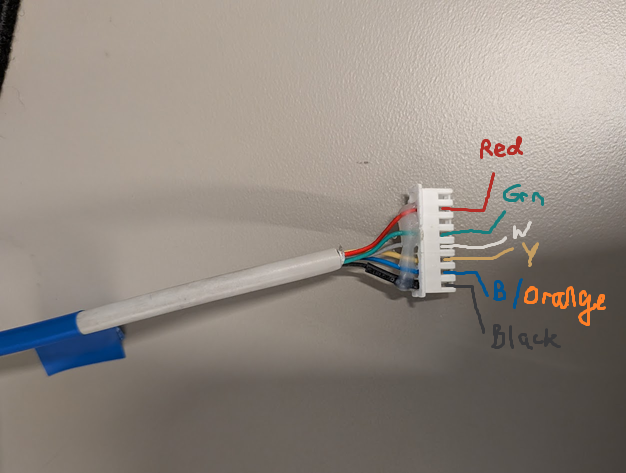

Teensy communicates with each individual O-Drive over UART pins, which is wired in this configuration
